村田murata一級代理貼片電容/SMD陶瓷電容原裝現貨，大量庫存，現貨供應，ROHS產品
GR455DR73D103KW01L 2220 X7R 10NF 2KV 10%
GR443DR73D472KW01L 1812 X7R 2KV 4.7NF 10%
GR443QR73D332KW01L 1812 X7R 2KV 3.3NF 10%
GR443QR73D222KW01L 1812 X7R 2KV 2.2NF 10%
GR442QR73D152KW01L 1808 X7R 2KV 1.5NF 10%
GR442QR73D102KW01L 1808 X7R 2KV 1000PF 10%
GR442QR73D471KW01 1808 X7R 2KV 470PF 10%
GR442QR73D681KW01L 1808 X7R 2KV 680PF 10%
GRM55DR73A104KW01L 2220 X7R 1KV 0.1UF 10%
GRM43DR73A473KW01L 2220 X7R 1KV 47NF 10%
GRM43DR73A333KW01L 1812 X7R 1KV 33NF 10%
GRM32DR73A223KW01L 1210 X7R 1KV 22NF 10%
GRM32QR73A103KW01L 1210 X7R 1KV 10NF 10%
GRM31BR73A472KW01L 1206 X7R 1KV 4700PF 10%
GRM31BR73A332KW01L 1206 X7R 1KV 3300PF 10%
GRM31BR73A222KW01L 1206 X7R 1KV 2200PF 10%

GRM31BR73A152KW01L 1206 X7R 1KV 1.5NF 10%
GRM31BR73A102KW01L 1206 X7R 1KV 1NF 10%
GRM31BR73A471KW01L 1206 X7R 1KV 470PF 10%
GRM55DR72J224KW01L 2220 XR7 0.22UF 630V 10%
GRM43DR72J104KW01L 1812 X7R 630V 100NF 10%
GRM43QR72J683KW01L 1812 X7R 630V 0.068UF 10%
GRM32DR72J473KW01 1210 X7R 630V 47NF 10%
GRM32DR72J333KW01L 1210 X7R 630V 33NF 10%
GRM32QR72J223KW01L 1210 X7R 630V 22NF 10%
GRM31BR72J103KW01L 1206 X7R 630V 0.01U 10%
GRM31BR72J472KW01L 1206 X7R 630V 4.7NF 10%
GRM31BR72J222KW01L 1206 X7R 222K 630V 10%
GRM31BR72J152KW01L 1206 X7R 152K 630V 10%
GRM31BR72J102KW01L 1206 X7R 102K 630V 10%
GRM55DR72E105KW01L 2220 X7R 250V 1UF 10%
GRM55DR72E474KW01L 2220 X7R 250V 0.47UF 10%
GRM43DR72E474KW01L 1812 XR7 250V 0.47UF 10%
GRM55DR72E334KW01L 2220 X7R 250V 0.33UF 10%
GRM43DR72E334KW01L 1812 X7R 250V 0.33UF 10%
GRM43DR72E224KW01L 1812 X7R 250V 220N 10%
GRM32DR72E224KW01L 1210 X7R 250V 224K 10%
GRM32QR72E154KW01L 1210 X7R 250V 0.15UF 10%
GRM32DR72E104KW01L 1210 X7R 250V 0.1UF 10%
GRM31CR72E473KW03L 1206 X7R 250V 47NF 10%
GRM31CR72E333KW03L 1206 X7R 250V 33NF 10%
GRM31BR72E223KW01L 1206 X7R 250V 22NF 10%
GRM21BR72E103KW03L 0805 X7R 250V 10NF 10%
GRM31A7U3D100JW31D 1206 npo 1KV 10P 5%
GRM31A7U3D470JW31D 1206 npo 47P 1KV 5%
GRM32A7U3D820JW31D 1206 NPO 82P 1KV 5%
GRM42A7U3F101JW31L 1808 NPO 3KV 100PF 5%
GRM31A7U2J681JW31D 1206 NPO 680PF 630V 5%
日本安規 250VA交流電容 非安規認證貼片
GA255DR7E2104MW01L- 2220 250VAC 104K
GA243QR7E2103MW01 1812 250VAC 103K

GA243DR7E2472MW01L 1812 250VAC 472K
詳情咨詢電話：18922842911溫先生 QQ：5244338

MURATA村田安規貼片電容Y3系列 250VAC
GA342QR7GD471KW01L 1808 Y3 AC250V DC3KV 470PF
GA342QR7GD681KW01L 1808 Y3 AC250V DC3KV 680PF
GA342QR7GD102KW01L 1808 Y3 AC250V DC3KV 1NF
GA342QR7GD152KW01L 1808 Y3 AC250V DC3KV 1.5NF
GA343QR7GD222KW01L 1812 Y3 AC250V DC3KV 2.2NF
GA343DR7GD472KW01L 1812 Y3 AC250V DC3KV 4.7NF
MURATA村田安規貼片電容Y2系列 250VAC
GA342A1XGF330JW31L 1808 Y2 AC250V DC5KV 33P J
GA342QR7GF471KW01L 1808 Y2 AC250V DC5KV471K
GA352QR7GF471KW01L 2211 Y2 AC250V DC5KV471K
GA342QR7GF681KW01L 1808 Y2 AC250V DC5KV681K
GA342DR7GF102KW02L 1808 Y2 AC250V DC5KV102K
GA352QR7GF102KW01L 2211 Y2 AC250V DC5KV102K
GA352QR7GF152KW01L 2211 Y2 AC250V DC5KV152K
GA355QR7GF222KW01L 2220 Y2 AC250V DC5KV222K
GA355DR7GF472KW01L 2220 Y2 AC250V DC5KV472K
MURATA村田安規貼片電容X2系列
GA355QR7GB103KW01L 2220 X2 AC250V DC2.5KV 10NF

GA355DR7GB223KW01L 2220 X2 AC250V DC2.5KV 103K
GA355ER7GB473KW01L 2220 X2 AC250V DC2.5KV 473K

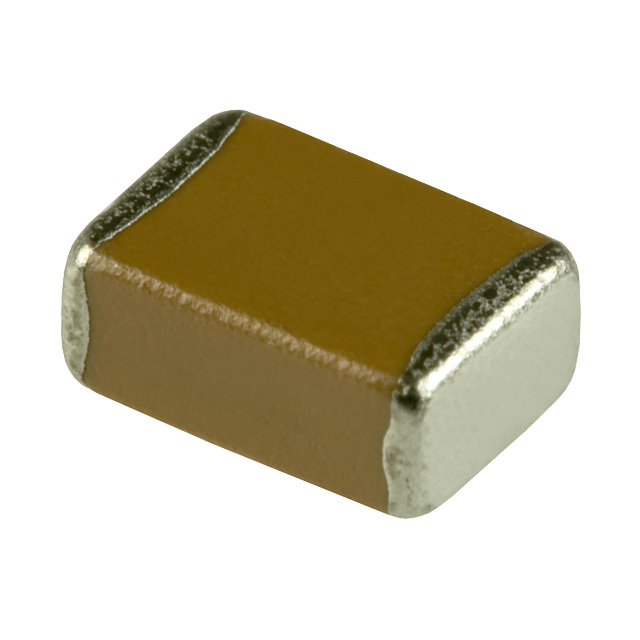

GR442QR73D471KW01L

1808 x7r 2000v 470pf ?10%精度原裝正品新貨

形狀

L尺寸	4.5 ±0.3mm
W尺寸	2.0 ±0.2mm
T尺寸	1.5 +0/-0.3mm
外部電極寬度e	0.3mm min.
外部電極間距離g (以上)	2.5mm
尺寸代號 mm(inch)	4520 (1808)

規格

靜電容量	470pF ±10%
額定電壓	2000Vdc
溫度特性 (標準規格)	X7R(EIA)
靜電容量変化率	±15%
溫度特性的溫度范圍	-55 to 125℃
工作溫度范圍	-55 to 125℃

備注事項

LAN/DC-DC Converter Primary-Secondary Couplings only

參考信息

包裝	規格	最小訂購單位
	φ180mm壓紋帶	2000
